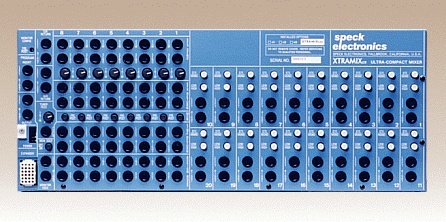

| XTRAMIXcxi Back Panel |
| XTRAMIXcxi Specifications | |
| Input Impedence | |
| Synth/Line input Effects return input Aux & Cue return input Program & Subgroup insert return Effects sum input |
10K ohms 10K ohms 10K ohms 5K ohms 10K ohms |
| Output Source Impedence | |
| All line outputs are designed to drive a 600 ohm load and may be operated into any load 600 ohms or greater. |
|
| Maximum Input Level | |
| Synth/line input (Low setting) Synth/line input (High setting) Effects return input Aux & Cue return Program & Subgroup insert return |
+20 dBu +28 dBu +21 dBu +21 dBu +21 dBu |
| Maximum Output Level | |
| Subgroup output Subgroup insert send Program output Program insert sends Monitor output Effects sends Headphone output |
+28 dBu +20 dBu +28 dBu +20 dBu +21 dBu +21 dBu 4 Watts |
| Frequency Response | 6Hz (-3 dB) to 154KHz (-3 dB) |
| Residual Noise | -89 dBu (unweighted) -95 dBu (A-weighted) |
| Output Distortion (THD + n) 22Hz-22KHz | .0067% (unweighted) .0037% (A-weighted) |
| Power requirements (Mixer) Power requirements (Power supply) |
Bi-polar 16.25 VDC, 1.3 Amp 100/120/230/240 VAC, 1/1/.5/.5 Amp |
| Dimensions (Xtramix) Dimensions (Power Supply) Shipping weight |
H x W x D =7" x 19" x 7" (178mm x 483mm x 178mm) H x W x D =3.75" x 11.25" x 5.25" (95mm x 286mm x 133mm) Approximately 33 lbs. (14.9Kg) |
| All measurements were performed with an Audio Precision System One test set. | |
